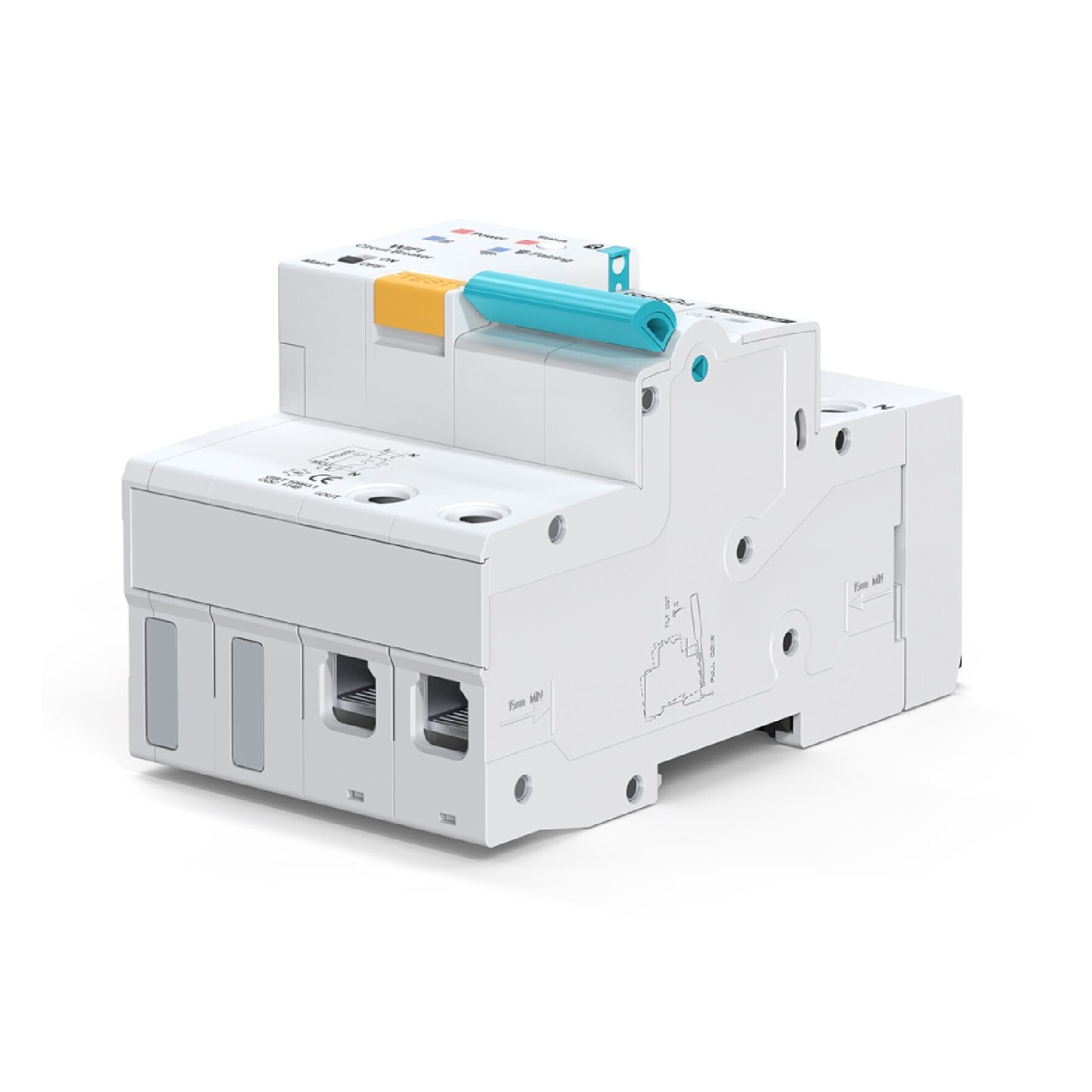

The Smart 2 Pole Earth Leakage Breaker is a smart, DIN-rail-mounted miniature circuit breaker (MCB) designed for both electrical protection and remote management. This combines standard overcurrent protection with Residual Current Device (RCD/RCCB) functionality, commonly used in modern smart home and industrial energy management systems.

Product features

• Remote operation: use the Tuya smart apps to switch the circuit on or off from anywhere in the world.
• Real-time monitoring: includes energy metering, allowing you to track:
  • Voltage
  • Current
  • Power consumption
• Voice control: fully compatible with Amazon Alexa and Google Assistant for hands-free operation.
• Safety interlocks: features a physical toggle switch for manual override and often includes a safety lock feature in the app to prevent accidental remote switching during maintenance.

Specifications

• Model: 2P C63
• Number of poles: 2
• Input voltage: 145~230VAC @ 50/60Hz
• Over-current protection: 1~63A
• Over-voltage protection: 245~295V
• Under-voltage protection: 145~220V
• Rated residual operating current: 30~500mA
• Curve code: C
• Rated insulation voltage: 500VAC
• Rated ultimate short-circuit breaking capacity: 10kA
• Operational safety: a physical safety lock, which prevents the device from being closed once engaged
• Wireless protocol: WiFi (2.4GHz)
• Energy consumption measurement accuracy: class 1.0
• Mounting support: DIN rail 35mm
• Monitoring physical data:
  • Voltage
  • Current
  • Power (Forward/Reverse)
  • Power Factor
  • Power Consumption (Forward/Reverse)
  • Temperature
  • Phase angle
  • Switch state
  • Device operating
  • Status
  • Frequency

Please use a qualified electrician when installing the circuit breaker.  We recommend that the smart earth leakage should not be replaced with the existing one because the smart circuit breaker is not certified.

If you have a Samite distribution board, you will need to get an adaptor [click here].

Downloads

• Specification Sheet [click here]
• User Manual [click here]

Typical application (not limited to)

• Home
• Offices
• Commercial

What is in the box?

• 1 x Smart 2 Pole Earth Leakage Breaker
• 1 x Instruction manual
