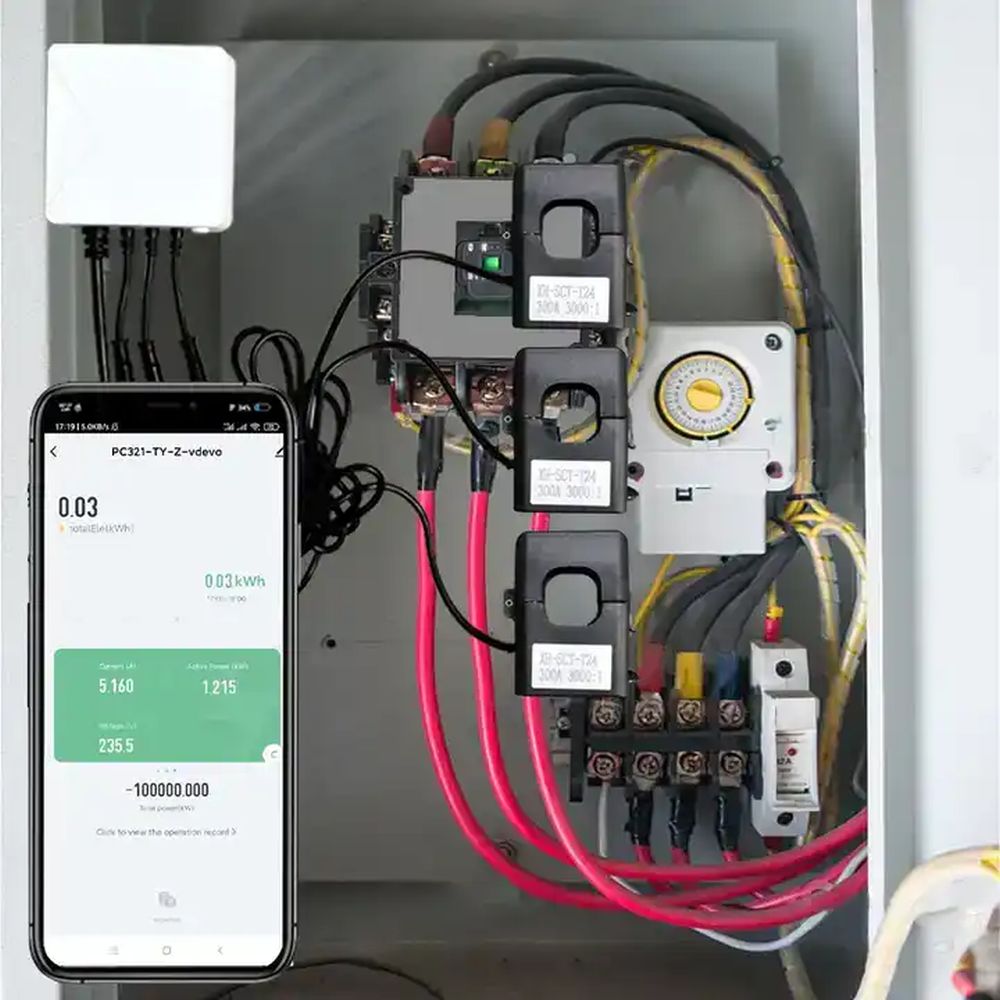

The Smart 80A Clamp Energy Meter is a non-invasive monitoring device designed for real-time electricity tracking. It is popular for its ease of installation using Current Transformer (CT) clamps that snap around wires without needing to cut or disconnect them, and its integration with the Tuya smart apps.

Product features

• Tuya compliant
• Can be integrated into an automation scene with other Tuya smart devices.
• Compatible with single or three-phase electricity.
• Three CTs for single-phase application.

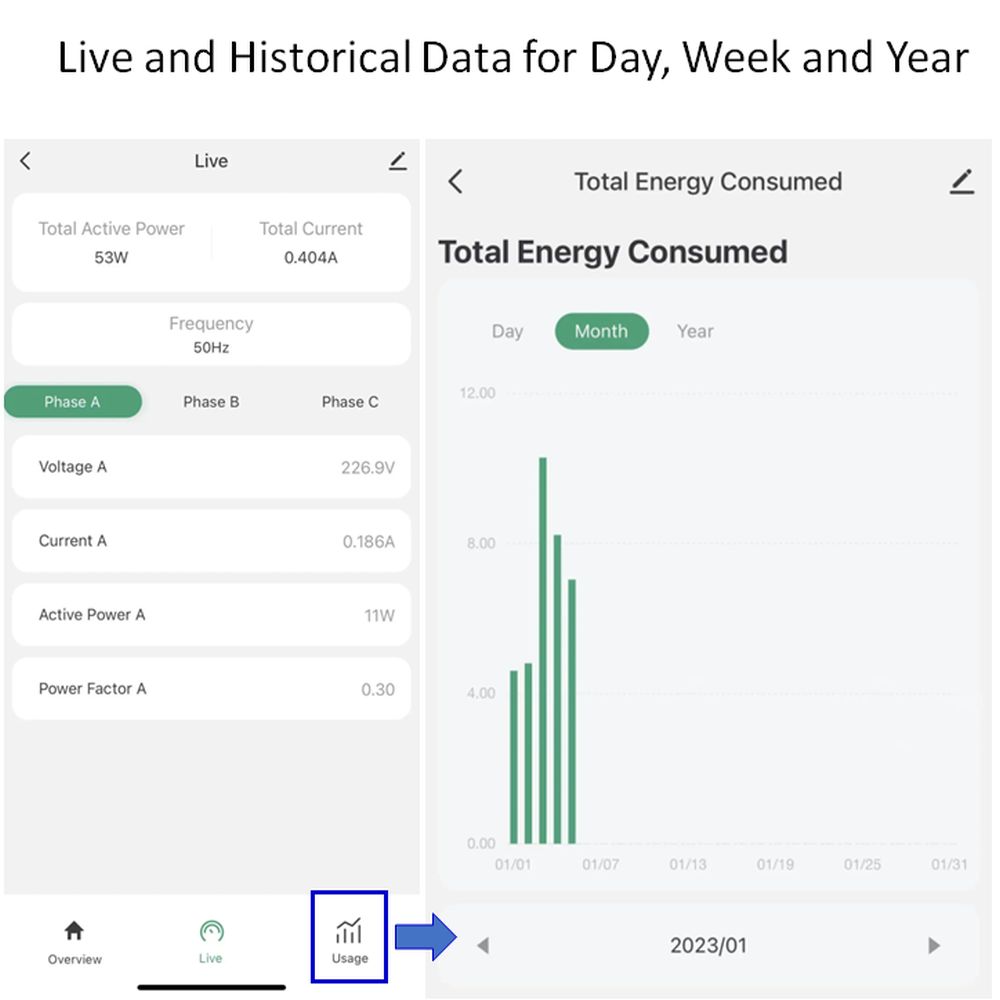

• Measures real-time:
  • Voltage
  • Current
  • Power factor
  • Active power
• Bi-directional  measurement
• Supports energy consumption and production measurement.

Specifications

• Input voltage: 100~240VAC @ 50/60Hz
• Number of clamps: 3
• CT current: 80A per clamp
• CT diameter: ±10mm
• Calibrated metering accuracy:
  • ≤100W (within ±2W)
  • >100W (within ±2%)
• WiFi protocol: 802.11 b/g/n 20
• Bluetooth protocol: Bluetooth 4.2 low energy
• RF characteristics:
  • Operating frequency: 2.4GHz
  • External antenna
  • Output power: up to +20dBm
• Operating temperature: -20°C~+55°C
• Operating humidity: ≤90% non-condensing
• Dimensions: 86 x 86 x 37 (L x W x H in mm)

Typical application (not limited to)

• Home
• Offices
• Businesses

What is in the box?

• 1 x Smart 80A Clamp Energy Meter
• 1 x Antenna
• 1 x Instruction manual
• 1 x Mounting screws
• 3 x 80A CT
