Smart 2Ch Relay Switch 10A + Shell | RF433Mhz + BT | DC or AC In | WiFi Tuya Smart Life

(2 customer reviews)
  • 1, 2 or 4Ch Self Locking Inching Relay WiFi Switch, 10A | Tuya SmartLife | Home Automation
  • Home Automation has never been this Smart, Simple or Affordable with the Tuya SmartLife solution for your Home, Office or Factory.
  • Complete control over a wide devices & appliances from ANYWHERE via your mobile phone or simply your voice.
  • Works with Amazon Alexa, Google home and supports IFTTT on the Fastest and most Stable Platform available.
  • Configure and Schedule activation dates, days of the week, start times, duration, geo-fence to name but a few.
  • 2CH relay – Smart WiFi, RF 433Mhz Remote Control and Bluetooth | Input Voltage: micro-USB 5VDC and DC or AC

R270.00R290.00 incl.

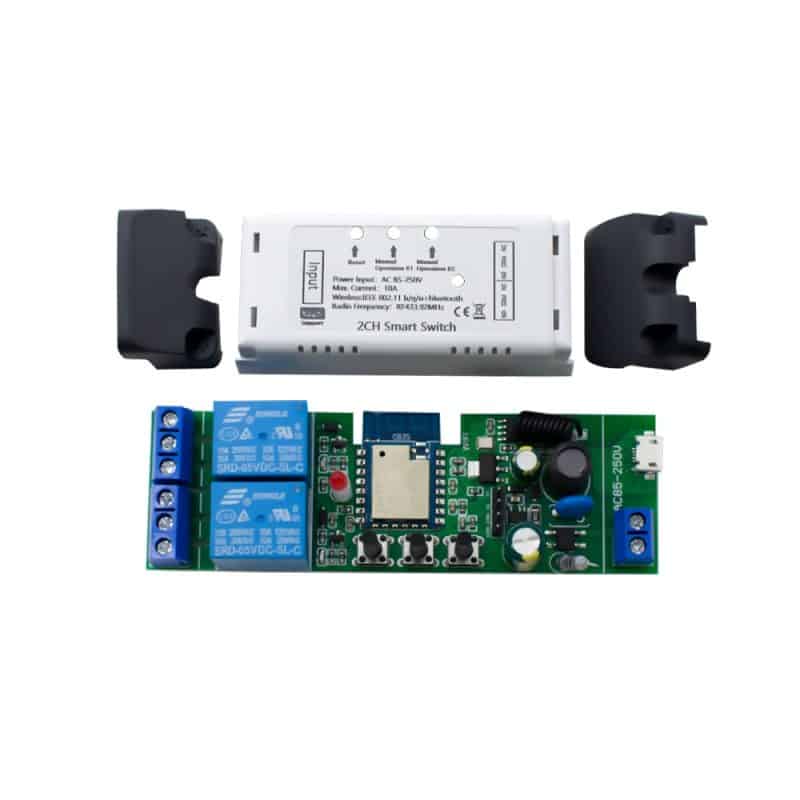

Smart WiFi 2 Channel Self Locking, Inching Relay Switch 10A with Shell, Tuya Smart Home, BLE Bluetooth and RF 433Mhz remote control option. DC and AC Input power options.

NEW!! All relay boards now Include:

  • Shell – protective cover (can be removed for alternate mounting)
  • Smart WiFi via the free Tuya App.
  • BLE – Bluetooth Option
  • RF 433mHz (chip 1527) – 4Ch RF remote can be purchased separately [click here]
  • 5VDC Input via Micro-USB connector on the board

New!! Input Voltage Options (you must select one or the other)

  1. DC Input Voltage: 7-32VDC
  2. AC Input Voltage: 85-250VAC

If you can image it, you can probably ‘Smart Switch’ it with this versatile, cost effective 1 Channel Smart Relay board. Enables remote control of any devices or home appliances via WiFi through the Tuya application SmartLife application installed on your phone or tablet (Android or IOS). Simply ‘Wire, Configure and Play’.

Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever-growing Smart Products. Supports Alexa, Google Home and IFTTT.

With so many smart home platforms available, WHY TUYA [click here]. Great way to make any appliance or device ‘Smart’.

Product Features (refer to additional images for connection & wiring diagrams)

  • Working Modes: selectable via the mode button to switch
    • self-locking mode: turn devices ON or OFF instantly.
    •  inching mode: toggle devices ON then OFF by tapping the PWR button on you phone
  • Manual Switching option via Ch Buttons on the PCB
  • Switching voltage range: up to AC250V/10A or DC30V/10A via relay dry contact switch.
  • Wide PCB Input voltage range Options: Micro USB Port 5VDC all devices
    • 1. DC 7-32V via the board mounted 2 pin Terminal Block
    • 2. AC 85-250V via the board mounted 2 pin Terminal Block
  • WiFi control via free Tuya app.
  • LED indication
  • Small and Compact design. Ease of Installation. 0.7sec On or Off (simulates an existing remote control) Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
  • Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solution.
  • All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]

Typical Uses

  • Unlimited Applications the 10A relay (dry contact) can be wired to either NC (normal closed) or NO (normal open) to switch any voltage up to AC250V/10A or DC30V/10A.

Download the User Manual [click here]

Product Variants Available:



Optional Items (recommended):

  • Need a power supply & short cable (USB to 3x micro USB) [click here]
  • Need to mount the PC Board, M3 standoff / hex pillar  [click here]
  • Need a suitable enclosure or housing ? [click here]



Specifications

Input Voltage OptionsMicro USB Port 5VDC on all devices | Option 1. DC Input 7-32V or 2. AC Input 85-250V via the board mounted 2 pin Terminal Block
Relay / Opening time0.7 seconds / lifespan +1M switches / insulation resistance: 100M
Relay LoadAC250V/10A or DC30V/10A
Switch modeSwitch/Mobile phone
WiFi Standards

RF Standards

IEEE 802.11 b/n/g 2.4G Hz / RF 433Mhz single code 1527 , for use with 4 CH remote control / BLE Bluetooth Low Energy
Support Voice ControlWorks with Home Assistant / Amazon Alexa/ Google Home
Operation Temp.–10°C to +60°C
Humidity5%–95% non-condensing
DimensionPCBA: 6.7*4.1*1.7cm
Weight0.05kg



What’s in the Box?

  • 1x Smart Relay Board
  • 1 x Shell Protective Cover
  • 1x Instruction Manual

FAQ’s

Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS),  offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa Echo Dot, Google Home and IFTTT and more….

tags:  sonoff, tuya industries, smart life app, smartlife, control 4, home automation, broadlink, zigbee, smart home products

Additional information

Weight0.4 g
Select Voltage Input Option

1. DC 7-32V, 2. AC 85-250V

Brand

Tuya Smartlife

2 reviews for Smart 2Ch Relay Switch 10A + Shell | RF433Mhz + BT | DC or AC In | WiFi Tuya Smart Life

Powered byCusRev
5.0
Based on 2 reviews
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
  1. Harold Coetzee (verified owner)

  2. Juvan R. (verified owner)

    These relays really help making home automation a simple process. Will be adding more to my home soon. Quick response, easy to set-up.
