Smart 1 Gang Relay Switch | AC or DC, 10A, and 433MHz | Tuya Smart Life

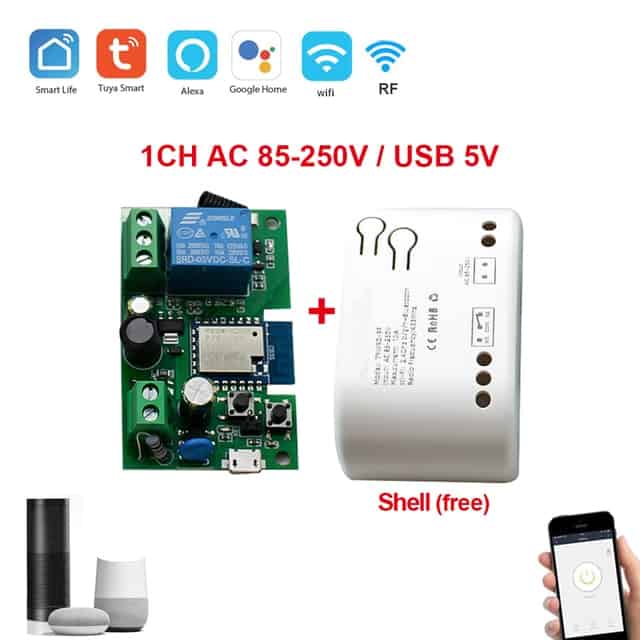

The Smart 1 Gang Relay Switch is a specialized low-voltage smart relay module designed for DIY automation. It combines WiFi, Bluetooth, and 433MHz RF control into a single unit, making it a “hybrid” switch that works with both smartphone apps and physical remote controls.
Product features
- Dual power input: It can be powered via the AC or DC terminals or a 5V micro-USB port.
- Scheduling and timers: set automated routines to run high-energy devices during off-peak hours to save on electricity costs.
- Voice control: integration with assistants like Amazon Alexa or Google Assistant for hands-free operation.
- Dry contact relay: the switching mechanism is isolated from the device’s internal power supply. This allows you to switch different voltages or simply “close a loop” without introducing any new current into the target circuit.
Specifications
- Input voltage:
- AC: 85~265VAC @ 50/60Hz (for the AC version only)
- DC: 7~32VDC (for the DC version only)
- Micro-USB: 5VDC (for both AC and DC versions)
- Load capacity: 10A, 2.2kW
- Wireless protocol:
- WiFi (2.4GHz)
- Bluetooth
- 433MHz RF
- Operating temperature: -20°C~+70°C
- Dimension: 69 x 41 x 20 (L x W x H in mm)
Available in AC or DC
To buy the 433MHz remotes, please see the links below.
- 433MHz remote | Short and Long Range [click here]
- 4-Channel 433MHz Remote | Long Range [click here]
- 8-Channel 433MHz Remote | Long Range [click here]
- 12-Channel 433MHz Remote | Long Range [click here]
Typical applications (not limited to)
- Gate and garage door openers
- Computer remote boot
- Intercom or door strike
What is in the box?

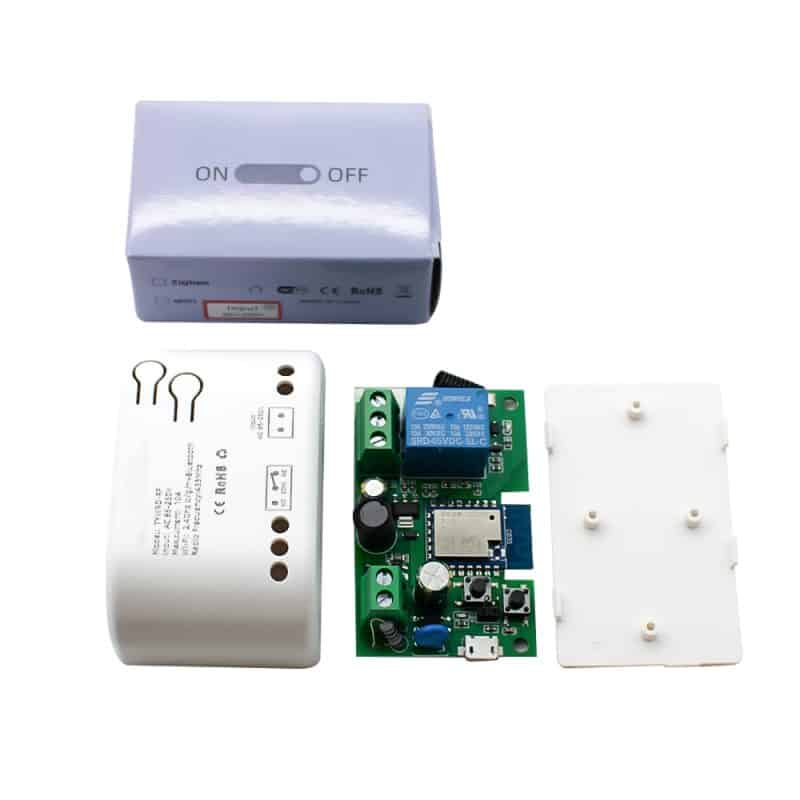

- 1 x Smart 1 Gang Relay Switch
- 1 x Instruction manual
FAQ’s
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
Home Automation made Smart, Simple, and Affordable via the Tuya Smart Life App (Android or iOS), offering the fastest, most stable platform and the widest range of Smart Products. Supports Alexa Echo Dot, Google Home, and IFTTT, and more…
Jonathan (verified owner) –
Quick delivery and works as expected.
Wilco van Niekerk (verified owner) –
t.db (verified owner) –
I was using a smart bulb before this, but I had two issues: 1) The bulb was not rechargeable, so shed no light within Eskom’s darkness 2) When Eskom did put the lights back on the bulb would also come on automatically with no way to change this default behaviour. Using this smart switch, I now use my good old rechargeable bulb, as I really wasn’t all that interested in the dimming, colour warmth, RGB colours and music modes of the smart bulb anyway. Furthermore, because the unit is powered from 5V USB power I can keep the switch itself online throughout loadshedding, using a small DC UPS designed for home routers. This means I can use the switches built in scheduling, or a smartlife scene whenever I like, regardless of loadshedding status. I have a particularly useful scene that switches the lamp on after hours only if the smartlife alarm system is away armed, and then switches it off later on if it is still away armed. In time I will introduce some variation to this scene by pairing the switch with both the alarm system and a smartlife light meter to control exactly when at night the lamp will be switched on.
I was tearing my hair out trying to find a solution to my two smart bulb problems, so I am very pleased this smart switch could solve those issues so elegantly.
