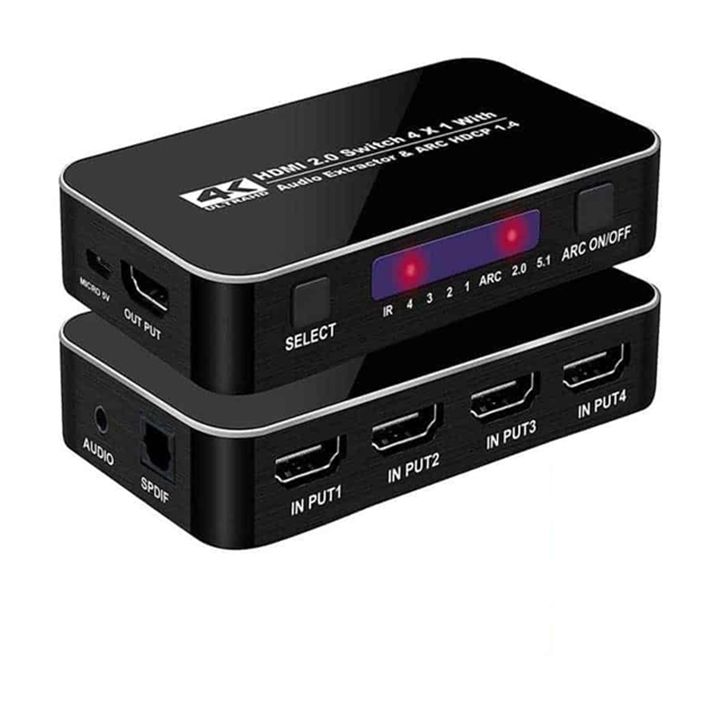

This cost effective HDMI Switch + Audio Extractor Digital SPDIF Optical Analogue Stereo will extract 2x audio formats (1x analog and 1x digital) from any 1 of 4 HDMI signal inputs and supports ARC.

Sound Bar connection

• TV does not support ARC:
  • connect your 4 HDMI inputs, to this switch
  • HDMI to your TV’s HDMI 1, from this switch (no need to change TV inputs, use the switch)
  • SPDIF output direct to your Sound Bar, from this switch

• TV does support ARC:
  • connect your 4 HDMI inputs, to this switch
  • HDMI to your TV’s ARC Input, from this switch (no need to change TV inputs, use the switch)
  • SPDIF output direct to your Sound Bar, from this switch

Audio Output Formats (refer additional product images for connections)

1. Analog Audio: is via a 3.5mm Aux jack plug for connection to headphones, sound systems and amplifiers etc.

• Supports L+R stereo
• If you require the analog output to be RCA then you will require a 3.5mm jack plug to 2x female RCA cable

2. Digital Optical SPDIF/ Toslink: is via optical connection.

• Supports 2.1ch | 5.1ch | DTS-HD | Dolby-true HD | LPCM7.| DTS/Dolby-AC3/DSD
• Need to Buy a Optical Cable [click here]

Features :

● Switches easily between up to four HDMI sources / players / gaming consoles.
● Supports Blu-Ray 24/50/60 fps / HD-DVD / xvYCC / Playstation 3 / Multichoice HDPVR / XBOX 360 and other HDMI source devices on the market.
● Supports switching of 3D content.
● Extends the range of HDMI compliant device by equalizing and re-clocking the HDMI signal.
● Maintains high resolution video – beautiful, sharp HDTV resolutions up to 1080pand computer resolutions up to 1920 x 1080 are easily achieved.
● HDMI Built-In Equalizer to allow longer HDMI cables lengths up to 15 Meter.
● HDCP Compliant to allow switching of HDCP devices.
● Discrete IR remote (included).
● Supports deep color 30bit, 36bit.
● Digital audio format, as DTS-HD/Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD.
● Support signal retiming.
● Support input up to 15metres AWG24 HDMI 1.3/1.4 standard cable length.
● Output up to 15metres AWG24 cable length.
● Inputs can be switched with the IR remote control can also can be controlled by button.
● It can smartly jump over those input sources which are not connected.
● With the smart function of memory, it can come back to the last status / input when restarted or reconnected.
● No loss of quality.
● Installs in minutes.
● Need DC5V / 0.8A power supply. Included with purchase.

Specifications :

– HDMI version : HDMI 1.4
– HDCP version : HDCP1.2
– Frames per Second : 24/50/60 fps.
– Resolutions: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
– Support video color format : 24bit / 30-bit / 36-bit deep color, HDR
– Support audio input format : DTS-HD / Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
– Audio Output : HDMI same as input, Optical Dolby Digital / Digital PCM 48Khz / Dolby Digital 5.1 / DTS 3/2 via Toslink Optical port. If the source device / player detects the device incorrectly a forced Dolby Digital 5.1 output via Optical Digital Output can be done by pressing the Switch button for 8 seconds and then releasing it to force DD 5.1 or DTS 3/2 from optical output. This needs only to be done once and will need to be done if the switch has been powered-off
– Max transmission bandwidth : 10.2Gbps
– Input/Output TMDS signal : 0.5~1.5Volts p-p
– Input/Output DDC signal : 5Volts p-p (TTL)
– Input cable distance : ≤15m HDMI AWG24
– Output cable distance : ≤15m AWG24 HDMI 1.3 standard cable
– Max working current : 800mA
– Power adapter format Input : AC (50HZ, 60HZ) 100V-240V; Output: DC5V / 0.8A
– Operating Temperature range : (-15 to +55℃)
– Operating Humidity range : 5 to 90%RH (No Condensation)
– Dimension (L x W x H) : 16.5 x 6.5 x 2.6 cm

What’s in the Box?

• 1x HDMI 4W Switch Audio Extractor
• 1x IR Remote Control (Cr2025 battery not incl.)
• 1x Power Adaptor, 2pin EU
• 1x User manual
