Smart 4 Zone WiFi Irrigation Controller, Tuya SmartLife
Make your Irrigation System completely hassle free and go ‘Smart’. Suitable for any new irrigation installation or simply upgrading your current controllers. Smart systems will never ‘lose’ their programming and do not require any battery backup and can be controlled from pretty much anywhere on the ‘planet’. Simply ‘Connect, Configure Once, Wire and done’.

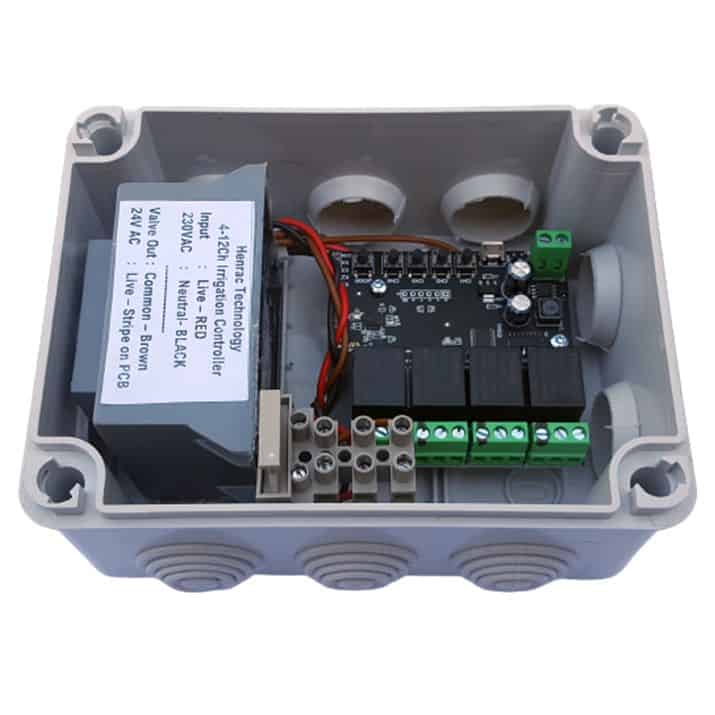

This DIY unit is supplied ‘pre-wired’ within an IP55 enclosure and contains 1x 4Ch Smart relay board and a 24VAC transformer – please refer to the additional images for a connection diagram and recommended optional item descriptions. Offer excludes solenoid valves.
Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever growing Smart Products. Supports Alexa, Google Home and IFTTT. Enables remote control of any number of devices or home appliances via the free Tuya SmartLife app installed on your phone or tablet (Android or IOS).
With so many smart home platforms available, WHY TUYA [click here]. Great way to make any appliance or device ‘Smart’. All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]
This offer is ‘prewired’ and includes.
- Enclosure Options (must select one or the other)
- Enclosure IP55 ‘splash & dustproof’: Dimensions: 150L x 110W x 70H mm. For indoor Use.
- Enclosure IP65 ‘waterproof’: Dimensions: 175L x 125W x 70H mm. For outdoor Use.
- Transformer built-in, 24VAC 1A, 25W
- 1 x 4channel smart relay board
- Fused Terminal Block for 230V Input / Spare 0.25A fuse included (taped to the lid)
- Enclosure Options (must select one or the other)
Download: user manual for Smart WiFi Irrigation Controller [click here].
Features on this System
- Via the free Tuya app you can pre-configure, activation dates, days of the week, start time and duration giving you complete remote control.
- Manual override ON/OFF via relay board
- Smart override ON/OFF via the SmartLife App (cell phone)
- The Smart system has numerous benefits over the conventional systems such as ‘never loosing its programming’ or requiring a ‘backup battery’.
- Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solution.
- Available in 4 Zone, 8 Zone and 12 Zone models, an unlimited number of units can be added as per your requirement.
- All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]
Typical Uses
- Smart Irrigation Controller for new or existing systems (retrofit upgrade). Suitable for use with any 24VAC Solenoid valves – such as Orbit, K-Rain, Rain Bird, Hunter etc.
Borehole? | Water Pump Smart Controller
- If you have a borehole with a pump we recommend our 20A Water Pump switch. To Buy [click here]
- This 20A Water pump Smart Switch is often used in conjunction with our Smart Irrigation systems. For control the pump for the duration of the all the irrigation zones.
- NOTE: via the Smart timing features always ensure at least one solenoid valve is open 1minute before the pump starts and that the last valve remains open 1 minutes after the pump switches off.
Optional recommended items
- Solenoid Valves: 24VAC Solenoid K-Rain (USA) to buy [click here]. Required for all new installations or simply to upgrade your current ‘problematic’ solenoid valves to better quality ones.
- Sprinkler Pop-Up & Nozzle: K-Rain (USA) NP4 + KVF10 | 6m Diameter Spray, 25cm height. To buy [click here].
- Connect CAT Cable: 8 core connect the controller to the solenoid valves via our Outdoor UV protected CAT5e Cable [click here]
- Rain Adjustment: you can add a Smart Water/Flood detector to indicate rain [click here]. The sprinklers can then be adjusted via the app Automation feature as required, for example reduce by 50% or switch OFF for next 3 days etc.
Specifications (Smart Relay Board)
| Work Voltage | 7-32VDC or 5-24VAC Terminal Block or Micro USB Port 5VDC |
| Relay Opening time | 0.7 seconds |
| Relay Load | AC250V/10A or DC30V/10A |
| Switch mode | Switch/Mobile phone |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance/IFTTT |
| Operation Temp. | –10°C to +60°C |
| Humidity | 5%–95% non-condensing |
| Dimension | PCBA: 6.7*4.1*1.7cm |
| Weight | 0.05kg |
What’s in the Box?
- 1x 4Zone Smart Irrigation Controller
- 1x Tuya User Manual
FAQ’s
- Why should I choose Tuya above all the other Smart Home Automation Platforms? [click here]
- How do I get started? [click here]
- What devices can presently be Smart Automated? [click here]
- Facebook [click here] | Twitter [click here] | Instagram [click here] | Youtube [click here]
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT and more….
John (verified owner) –
Thinus van Aswegen (verified owner) –
Very good Product and service
Michael D. (verified owner) –
Franco Austin (verified owner) –
chris smit (verified owner) –
Programmed but not yet installed
Bryan Pollen (verified owner) –
Always top notch service. Never a hassle. The WIFI Irrigation was so easy to install and works effortlessly. Thank You.
Michel (verified owner) –
This is a brilliant irrigation timer. You can set multiple on and off times on any days of the week. This was not possible with my very expensive Hunter irrigation timer. It was simple to install and set up.
Shaun Van Rooyen (verified owner) –
Great product at half the price of a Rainbird controller. I have purchased 2 and no problems at all.
Francois (verified owner) –
Works perfectly
Ronald Niksch (verified owner) –
Why two brown wires?
Hendi (store manager) –
Hi Ronald, please refer to the additional product images on the link below (sorry we cannot past image here)
Connections as follows:
Loose Terminal Block – black
1. Red & Black – 230VAC input (Live & Neutral)
3. Brown – 24VAC common neutral to all 4x solenoid valves
4. Terminal block -green.
Most right terminal block is zone 1 and most left screw is the other connection (Normally Open) to the valve for activation (valve Live).
You should not have 2 brown wires, if yes please send us an image via your cell to 060 319 2282
